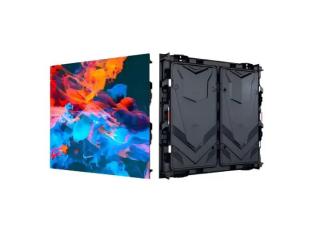

Outdoor Fixed LED Display-LOM960
Products Advantages:
Cabinet light weight 28KG/PC
Standard size 960mmx960mm
Compatible with all the 320x160mm and 320x320mm modules
Both function fixed led display and rental led display
Better flatness than Iron or aluminum led display
Real and Front services
LISN outdoor LOM960 cabinet material is made from one-piece magnesium alloy, which is better flatness than Iron or aluminum led display.
Unlike iron cabinet and aluminum cabinet, Magnesium alloy cabinet LOM960 cannot be customized. It has a standard size of 960mmx960mm. It is also lighter than iron cabinet and aluminum cabinet, each one is about 28KG
LOM960 LED Cabinet can be both real service and front service. It is compatible with modules have same wholes like 320mmx160mm, 320mmx320mm. In this way, you can buy one set of empty cabinets and several sets of modules, you can replace them when you need different pixels led screen on different occasions.
The magnesium alloy cabinet has better heat dissipation performance. It is equipped with at least 2PC 5V fans to maintain good air circulation and 3PC 300W power supplies to achieve the most perfect working condition.
Because of good flatness and light weight, LOM960 can be both as fixed led display and rental led display. When you have a long time project need to fix the led display in a certain place, you can install the led screen by a fixed supporting structure, but if you need to remove it to a temporary event, you can install them by a removable and simple structure.
Specification
Pixels pitch | P2.5 | P3.33 | P4 | P5 | P6.67 | P8 | P10 |
LED | SMD 3 in 1 | SMD 3 in 1 | SMD 3 in 1 | SMD 3 in 1 | SMD 3 in 1 | SMD 3 in 1 | SMD 3 in 1 |
Module size(mm) | 320x160 | 320x160/320x320 | 320x160/320x320 | 320x160/320x320 | 320x160/320x320 | 320x160/320x320 | 320x160/320x320 |
Module resolution | 128*64 | 64*64 | 80*40 | 64*32 | 48*24 | 40*20 | 32*16 |
Density | 160000 pixels/sqm | 111111 pixels/sqm | 62500 pixels/sqm | 40000 pixels/sqm | 22478 pixels/sqm | 15625 pixels/sqm | 10000 pixels/sqm |
LED Cabinet size (mm) | 960x960 | 960x960 | 960x960 | 960x960 | 960x960 | 960x960 | 960x960 |
Cabinet weight | 28KG/PC | 28KG/PC | 28KG/PC | 28KG/PC | 28KG/PC | 28KG/PC | 28KG/PC |
Material | Magnesium alloy | Magnesium alloy | Magnesium alloy | Magnesium alloy | Magnesium alloy | Magnesium alloy | Magnesium alloy |
Brightness | 5500-6500 cd/sqm (Nits) | 5500-6500 cd/sqm (Nits) | 5500-6500 cd/sqm (Nits) | 5500-6500 cd/sqm (Nits) | 5500-6500 cd/sqm (Nits) | 5500-6500 cd/sqm (Nits) | 5500-6500 cd/sqm (Nits) |
AVG power consumption | 460/sqm | 450/sqm | 420/sqm | 350/sqm | 320/sqm | 300/sqm | 280/sqm |
If you are looking for more details, kindly visit our website.
