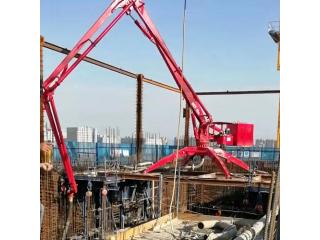

Spider Placing Boom – Advanced Concrete Placing Booms by JIDA Heavy Industry
The Spider Placing Boom, also known as spider concrete placing boom, is an advanced, highly maneuverable concrete placement system designed for efficient and precise concrete distribution on construction sites. As a leading manufacturer of concrete placing booms, HEBEI JIDA HEAVY INDUSTRY MACHINERY CO., LTD offers a wide range of spider placing booms that cater to various construction needs—from small-scale projects to large commercial developments.
Our spider concrete placing boom systems are fully hydraulic-driven, featuring multiple articulated arms that allow 360-degree rotation and flexible positioning. These booms are engineered for quick setup, easy operation, and minimal site disruption, making them an ideal solution for pouring concrete in columns, shear walls, and slabs.
Key Features & Functional Benefits of Spider Placing Boom
Max.Horizontal Working Reach 13/15/17000/21m
Total Weight without counterweight 2700/3200/4940/5020 kg
1.The placing boom features an innovative Z-shaped/R-shaped configuration with three articulating sections, enabling full 360-degree rotation during luffing and folding operations. This advanced kinematic system provides unparalleled concrete placement flexibility for vertical structural elements including walls, columns, piling systems, and complex pipe networks, effectively eliminating spatial constraints in congested work areas.
2.The hydraulic control system employs intuitive push-button operation for precise manipulation of boom articulation, folding mechanisms, and rotational movements. Our integrated safety-engineered system incorporates overload protection, flow control optimization, intelligent alarm systems, and phase sequence monitoring. This comprehensive safety architecture ensures operational reliability, smooth power transmission, and failsafe performance across all working conditions.
3.Designed with space-efficient engineering, the lightweight modular system offers exceptional portability. The boom can be rapidly deployed on various working surfaces including cast-in-place floors, temporary platforms, lightweight scaffolding, or mobile trailer configurations without requiring permanent fixation. Its non-intrusive design allows complete removal from the jobsite during non-operational periods, minimizing workflow interference while simplifying maintenance procedures.
4. The Spider Concrete Placing Boom demonstrates exceptional adaptability for multi-story construction projects and complex urban job sites. Its configuration-independent design maintains consistent performance across varying floor geometries and architectural layouts, making it ideal for projects requiring high-precision concrete placement in spatially challenging environments.
Main Technical Specification
Model | HGY13 | HGY15 | HGY17 | HGY21 | ||
1 | Horizontal(m) | 13 | 15 | 17 | 21 | |
2 | Length of booms (m) | 1st section | 3.7 | 6 | 6.67 | 7.96 |
2nd section | 4.5 | 5 | 5.73 | 6.95 | ||
3rd section | 4.8 | 4 | 4.6 | 6.1 | ||
3 | Articulation of booms (°) | 1st section | -2~84.4 | 0~90 | ||
2nd section | 0~180 | |||||
3rd section | 0~180 | |||||
4 | Rotation angle (°) | 360 | ||||
5 | Total weight (t) | Without counterweight | 2.7 | 3.2 | 4.94 | 5.05 |
Counterweight | 1.8 | 2.2 | 2.1 | 3.0 | ||
6 | Delivery pipe dimension (mm) | Ф125 | ||||
7 | Length of hose (mm) | 3000 | ||||
8 | Mode of operation | Radio Remote/Cable/Panle control | ||||
9 | Output (kw) | 4 | 5.5 | |||
10 | Hydraulic pressure (Mpa) | 20 | 22 | |||
11 | Power | 380V/50Hz | ||||
